TS-32 Nucleic Acid Extractor（32）
Catalog Number： TS-32
Price：Please inquire first
Product Details
Product Details

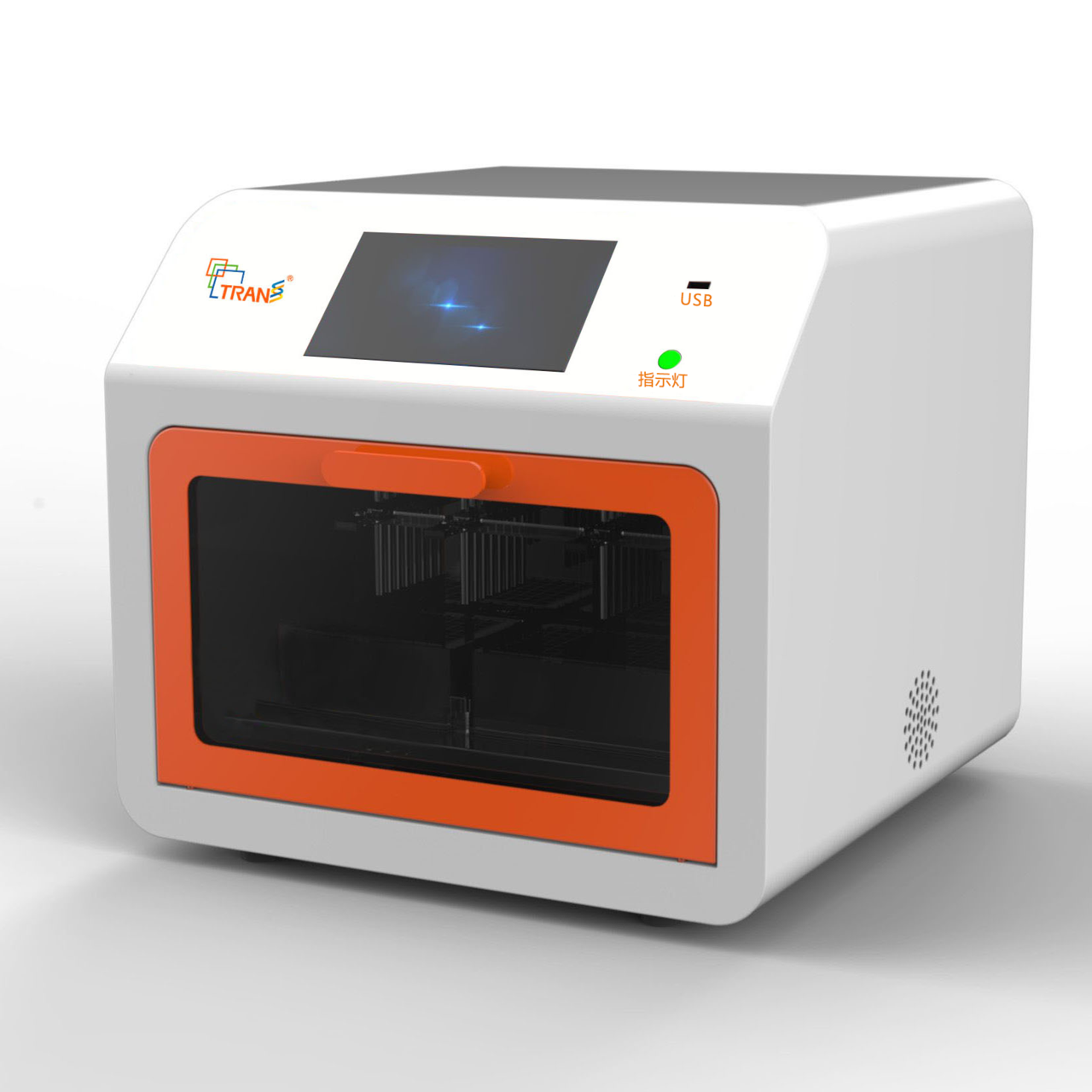

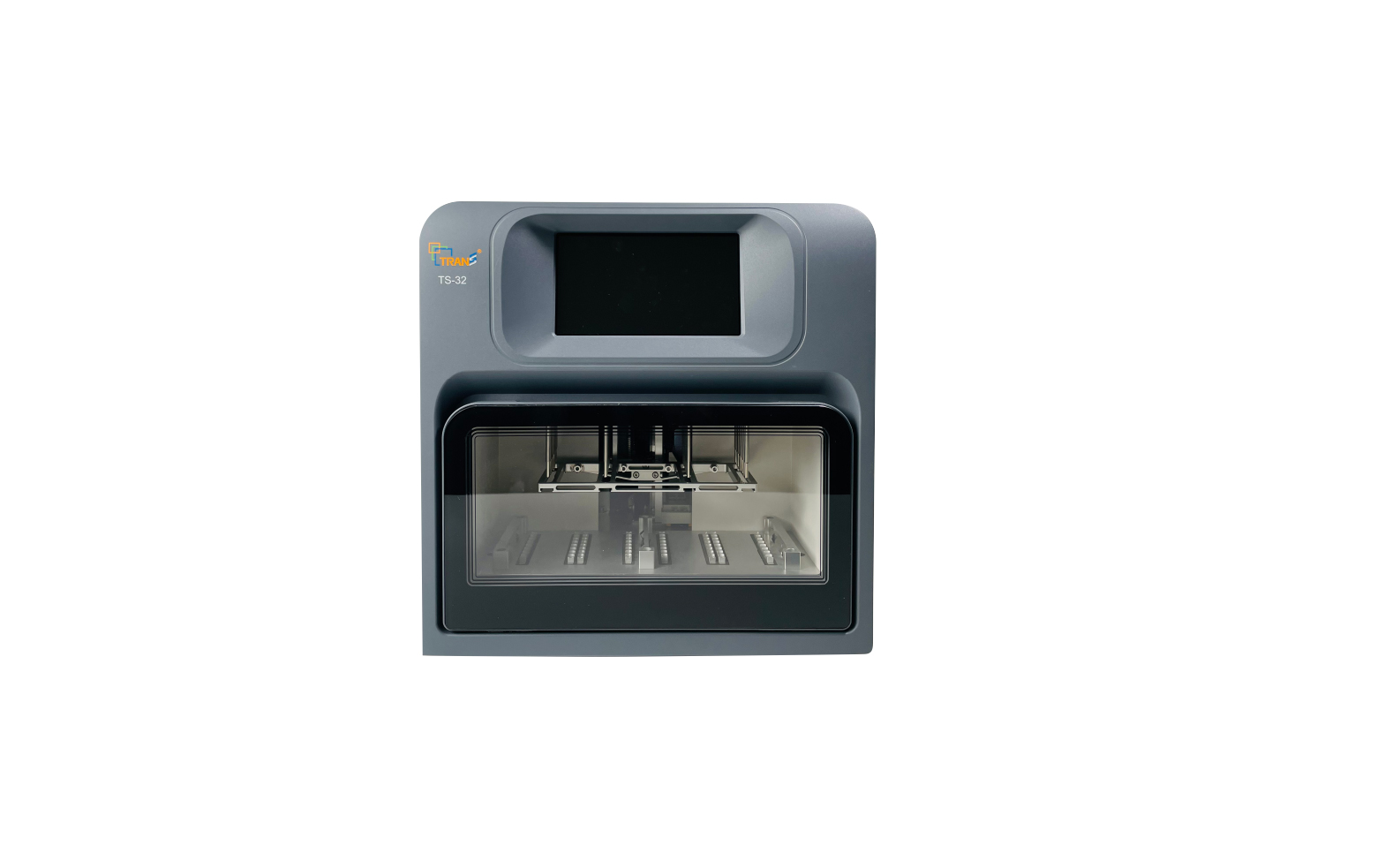

TS-32 Automated Nucleic Acid Extraction System is a high-tech instrument utilizing advanced magnetic bead separation technology. It offers high automation, fast processing, stable results, and simple operation. The system is designed for the extraction and purification of nucleic acids from biological samples. It automates the entire process—including liquid mixing, magnetic bead capture, release, and transfer—to efficiently isolate and purify nucleic acids. The system eliminates the need for traditional steps such as centrifugation and filtration. Featuring active heating and cooling capabilities, the TS-32 can process 1 to 32 samples simultaneously. It supports a wide range of sample types, including blood, tissues, cells, swabs, viruses, and other clinical or forensic specimens. This enables true high-throughput, rapid, and automated nucleic acid extraction. The high-quality DNA/RNA extracted is suitable for highly sensitive downstream applications, such as quantitative PCR, clinical molecular diagnostics, gene expression analysis, genetic studies, as well as forensic and infectious disease research.
As a leading provider of nucleic acid separation and purification technologies in China, TransGen Biotech offers a variety of compatible extraction kits, maximizing the instrument's application scope while ensuring cost-effectiveness.
Product Operation Video
Specifications
| Specification | Details |
| Sample Throughput | 1–32 samples |
| Processing Volume | 20–1000 µl |
| Magnetic Rod Recovery Efficiency | > 98% |
| Temperature Range | Ambient Temperature – 120 °C |
| Operation Interface | 7-inch LCD Touch Screen |
| Program Management | Add, Edit, Delete, Copy, Import, Export |
| External Interfaces | USB 2.0, Ethernet (RJ45) |
| Contamination Control | UV Decontamination |
| Input Power | AC 220–240 V, 50/60 Hz, 350 VA |
| Dimensions (L × W × H) | 394 mm × 420 mm × 370 mm |
| Weight | 22 kg |
Large Touchscreen with Bilingual Interface
A large screen with Chinese and English display, combined with touch control, makes operation simple and user-friendly.
Precise Control
Features a built-in industrial computer, eliminating the need for an external PC. Standalone operation saves space and energy while providing a highly stable automated control system.
Temperature Control
Allows customizable lysis and elution temperatures to meet specific experimental requirements.
Consistent Results
Minimizes manual handling errors and variability, ensuring stable and reproducible outcomes.
Rapid Extraction
Automated operation enables fast and efficient processing. Extraction of 1–32 samples can be completed in as little as 12 minutes.
Flexible Programming
Powerful program editing function for flexible and efficient customization of applications. Compatible with various reagent requirements and supports importing/exporting protocols via USB drive.
Safe and Stable Operation
Equipped with a UV lamp and a negative pressure fan to reduce aerosol contamination. A safety door helps prevent misuse, ensuring stable and secure extraction processes.
Broad Compatibility
The system is flexible and open, compatible with a wide range of nucleic acid extraction reagents.
